Static EliminationSpot Type

ADJUST-HOSE TRINC

TAS-152 ADJ
TAS-159 ADJ-CE
TAS-1276 ADJ-WIDE

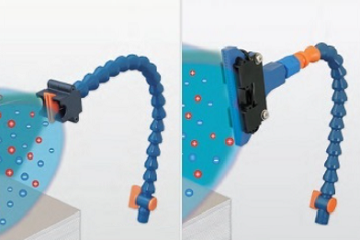

A shape-memory type flexible plastic hose is transformed into an static-ionizer/duster.

Features

No-Blow ionizing possible
Slight-Air ionizing
Micromini size
Powerful static-ionizing
Powerful dusting off

Applications

Chemicals

Printing / Coating

Medical/Hygiene/Pharmaceutical

Inquire about this product

Feature details

Powerful ionization

By adopting a unique ion engine system, it generates a dense ion and eliminate static electricity of the object strongly.
Discharge needles、
・Single type（TAS-152 ADJ,TAS-159 ADJ-CE）　1 pair
・Wide type（TAS-1276 ADJ-WIDE）　　　　　　2 pair

No-Blow ionizing is possible

No-Blow ionizing is possible. Since it does not raise dust, it can be a conclusive factor for anti-dust measures.

No leakage ionizing is possible

The leakage-free structure, which cannot cause leakage by isolating the high-voltage part from the air flow path, is adopted. It boasts high durability that prevents breakdowns even when used for a long time.

Wide range ionization by an adjust hose with wide outlet *Wide type(TAS-1276 ADJ-WIDE)

The wide area type with 108 mm wide ion outlets on the adjust hose is adopted to enable wide area ionization. Large workpieces can also be ionized and dedusted (by air blow)

lonizing of high-speed moving objects

It is made possible to ionize and dedust (by air blow) the object which moves at high velocity by dense ions.

Wide area ionizing by air-blow

The object distance of the object to be ionized can be adjusted according to the amount of air flowing through the ion outlets.
The objects up to 7 meters away can be ionized. (Wide type TAS-1276 ADJ-WIDE, 0.3MPs air)

ADJUST HORSE TRINC has serialized.

TRINC has introduced the industry’s first adjust hose from before. TRINC has been highly appreciated by the market for its unique concept of "combining the adjust horse with ionizer" beyond traditional common sense. This time in response to a good repute of it, we have introduced a wide range type and made it available as a model of the ADJUST HOSE TRINC series. ADJUST HOSE TRINCs are used mainly in printing related field. Those papers and plastic cards used in this field are sheet-fed type and so easy to be charged with static that static attraction force is induced in between with equipment, which causes various problems such as the objects slipping sideways, not going straight, not aligned properly and being doubled. And they have caused a big confusion to the work sites. At the work site, those who were up a tree had tried to use ADJUST HORSSE TRINC and has found it solves the problems excellently. And per the requests by the market for larger objects to be ionized more strongly, we have added a wide type in addition to the single type to be in series.

Prevention and elimination of machine cutting shavings using ADJUST HOSE TRINC

Product number (model number/format)

TAS-152 ADJ

TAS-159 ADJ-CE

TAS-1276 ADJ-WIDE
