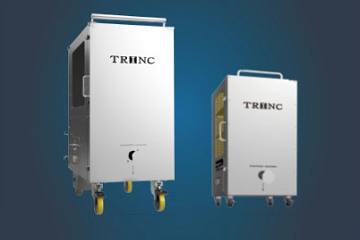

CLEAN STORAGE VEHICLE
Cleanliness: Class 10 or below.
Static charges: ±10V or less.
Storage and transfer under the ultimately clean environment is realized.
High ion balance
Easy maintenance
Feature details
Ultra clean environment
On the conventional storage, the dust piled up on the upper shelf falls down, letting unclean as it goes down. The new storage realizes the ultra-clean environment of less than Class 10 all over the shelves.
Ultra-high-speed purification
Just one minute can be ultra-high-speed purification to reach the class 10 or less of cleanliness in the following.
Simultaneous purification on all shelves
The purification time required on the conventional storage gets longer since the lower shelves have more dust falling down from the upper ones. New storage purifies all shelves at once in a minute.
Uniform internal presser all over the storage
The internal pressure of conventional storages drops as it goes down to lower shelves so that outside air tends to get in there. Contrary, this storage keeps it high and constant at every shelf to avoid outside air from getting in and high cleanliness is maintained everywhere.
ATMOSPHERIC EARTHING brings positive pressure all over shelves.
A pressure releasing hole is provided at the bottom part of the storage, so that the inside of the storage is kept always under positive pressure to avoid the outside air from coming in.
Cleanliness inside the storage attains Class 10 or below.
In the fields of both the precise electronics typified by semiconductors and the medical goods related to biotech, static and dust-mixing-in are major concerns and various measures have been made in manufacturing and transaction processes. To the contrary, countermeasures against anti-static and anti-dust steps for the storage and transfer of products between processes have been left unnoticed. CLEAN STORAGE VEHICLE substantializes a highly clean space inside the storage by activating a newly developed function (see Feature 05) to bring the possibility of dust intrusion from the outside to zero, which also works to prevent the dust from coming in from when taking the products in and out of the storage. On each shelf, an independent ionizer is installed for the safest anti-static measure. And a new wireless ground technology adopted realizes an ultimate static-free storage and transfer between processes.
Ideal CLEAN STORAGE VEHICLE for during transport/ Product Storage
