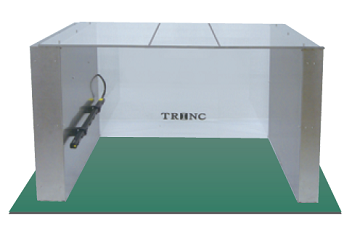

CLEAN DESKTOP TRINC (RECTANGULAR TYPE)
Clean Space ConstructionClean Bench

CLEAN DESKTOP TRINC (RECTANGULAR TYPE)

TAS-1238 CDTR-HP4040
TAS-661 CDTR-MP4040
TAS-662 CDTR-PP4040
TAS-1239 CDTR-HP6060
TAS-1240 CDTR-MP6060
TAS-1241 CDTR-PP6060

Your desktop turns directory into a Clean Bench. It realizes the cleanliness of lower than “Class 1” in mere 1 minute.

Features
Cleanliness
Powerful ionizing
Easy maintenance
One-touch cleaner
Protection of dust re-adhesion
Applications
Electronic Components / Precision Instruments

Feature details

No more conventional clean bench needed

Your workbench changes quickly into a clean bench, making ordinary clean bench unwanted any more.

Marvelous cleanliness is realized with marvelous quickness

The cleanliness of lower than "Class 1" is realized in mere 1 minute.

No dust-free garment required

A clean space is materialized in front of your eyes. You get free from a troublesome change of clothes into a dust-free garment that binds you all day long.

The best suited cleanliness realized according to the application

1. High cleanliness (HP model)
    via a HEPA filter (outlet) and a pre-filter (inlet)
2. An economically reasonable investment and running cost realized with rational cleanliness (MP model)
    via a moderate filter (outlet) and a pre-filter (air inlet)
3. Affordable clean environments (PP model)
    via pre-filters (both outlet and inlet)

Longer filter operation life

The filter used on the conventional systems taking in outside air has a shorter life or requires a frequent maintenance or replacement. This device circulates inside air so that the filter's maintenance is reduced drastically to cut down the running costs.

A replaceable filter adopted on the front face of the air outlet and inlet units

Most conventional clean benches have their filters installed on the ceiling. So the maintenance to them has hardly been made because it involves a risk of falling down and is not easy to do regularly. On this device, the front face-loaded filters can be replaced easily without tools on the workbench.

A clean bench defying traditional common sense has come on stage.
"This is called “clean desktop" for the fact that the desktop workspace you are working on changes instantly into a clean space once you place this simply on the far corner of it. A clean bench is no more required. A dust-free garment is no more needed. Not only is high cleanliness given, but extreme space saving is made economically to the extent that the maintenance of the system can be done easily on the spot even without tools.

TRINC fan type CDT   TRINC rectangular type CDTR


Conventional large clean bench has been used to create a clean environment. TRINC uses a new method to make the work desk itself a clean environment.



Videos of CLEAN DESKTOP TRINC






Product number (model number/format)

TAS-1238 CDTR-HP4040
TAS-661 CDTR-MP4040
TAS-662 CDTR-PP4040
TAS-1239 CDTR-HP6060
TAS-1240 CDTR-MP6060
TAS-1241 CDTR-PP6060
