PORTABLE CLEAN BENCH
Clean Space ConstructionClean Bench

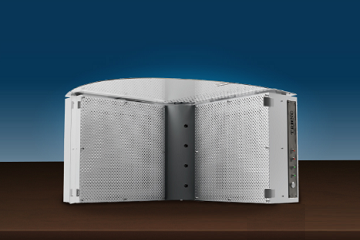

PORTABLE CLEAN BENCH

TAS-1430 CDT-P-HP3030

Possible to hand-carry due to compact and light.
It realizes the cleanliness of lower than “Class 1” in only 1 minute.

Features
Cleanliness
Powerful ionizing
Easy maintenance
Protection of dust re-adhesion
Foldable and portable
Applications
Electronic Components / Precision Instruments

Feature details

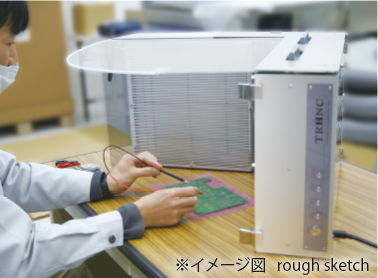

Easily achieve an ultra-clean environment anywhere you want

This unit transforms a tabletop into a clean environment in no time. The required installation space is only 610 x 551 cm. No special tools, power supply, or work is required. It provides a localized, world-class ultra-clean environment only when and where you need it.

Easily achieve an ultra-clean environment anywhere you want

Unparalleled purification ability

The unit's high purification capacity creates an ideal Class 1 dust-free environment one minute after startup. Dust penetration from the outside is also prevented, thus thoroughly preventing dust from adhering to workpieces during operation.

Ideal static control

It builds a dust-free clean space and at the same time makes the interior an ion space filled with ions. Dense ions remove static electricity from all materials in the work area, including the workpiece, dust generated from the workpiece, and the worker's hands. This prevents electrostatic breakdown and reattachment of foreign matter caused by static electricity, allowing workers to work with peace of mind.

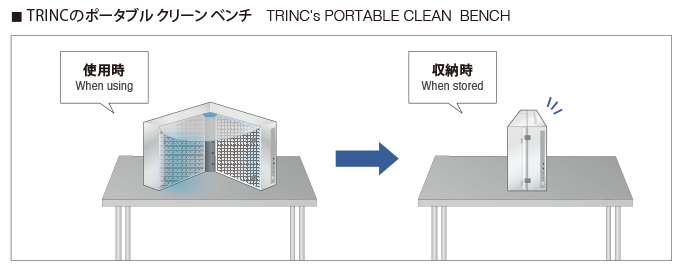

Compact and foldable for easy transportation and storage

The unit can be folded compactly for space-saving storage when not in use. Its small size and light weight make it easy for anyone to move it around. Folding and installation are very easy and can be completed in less than 30 seconds without the use of tools.

Easy to use for everyone

This unit does not require any difficult operations and operates with a single switch. It can be used in any location to reliably create an ultra-clean environment without being affected by the surrounding environment.

Easy to assemble and store

Conventional clean benches are affected by the surrounding environment and require frequent filter changes and constant and troublesome maintenance. This model uses an internal air circulation system that virtually eliminates the risk of clogging of the HEPA filter, reducing the maintenance frequency by an order of magnitude. Filters can be replaced from the front panel in a short time without the need for tools.

TRINC's PORTABLE CLEAN BENCH is the only clean bench in the world which you can keep it in storage and can bring out to use whenever you need it. It is useful when you want to make a local ultra-clean environment that surpasses ultra-high performance clean rooms or clean benches only when you need it without spending time and effort.


Product number (model number/format)

TAS-1430 CDT-P-HP3030
