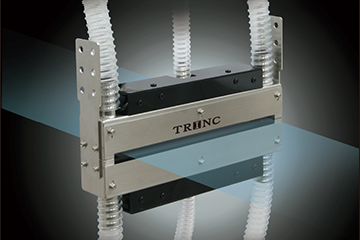

FILM TRINC (THIN TYPE)
TAS-1512 FILMT-200
TAS-1513 FILMT-400
TAS-1514 FILMT-600
TAS-1515 FILMT-800
TAS-1516 FILMT-1400
Crashing dust cleaning capability.
ultra thin film cleaner comes on stage with new system.
Retrofittable
Low price
Compact & light
High dust-removing performance
Perfectly non-contact processing
Low power consumption
Feature details
Ultra thin type
The device has been made as shin as 1/6 the conventional, viz. from 240mm to 40mm. So it can be installed into the narrowest gaps made on film processing machine.
High dust-removing performance
A cleaning rate (performance of dust-removing) is beyond largely the capability (10 to 50%) of the conventional system.
Perfectly noncontact processing
Since no roller is used, the film processed inside the system never touches anything. This prevents dust from being transferred to the film and makes the roller maintenance unnecessary.
Simultaneous operation on both sides
Both sides of the film are cleaned simultaneously in a lump. Of course, the processing only of one side is also possible.
Capable of cleaning the work (object) having an uneven surface
The cleaning head operates keeping a slight distance from the work and focusing it from different angles, so that the work even with a bit uneven surface can be cleaned. For example, the TAB tape mounted with IC chips can be cleaned.
No rollers necessary
No such a roller as used on the conventional film cleaner to restrain from behind the pressure of the air knife is required at all. So, the maintenance of rollers needed otherwise to keep the high precision job is also not required.
In the fields of not only the organic EL and liquid crystal attracting attention these days but also the lithium ion battery, the medicine and the food, the film/sheet materials are in heavy usage. But the film/sheet materials are likely to get charged with static leading to more dust attachment, which eventually makes products defective and lets associated factories face a big problem. To respond this problem, TRINC has already released the “FILM TRINC” based on a new theory and structure, and have innovated it again to be compact, convenient and economic as against the conventional film cleaner as more and less cleaning equipment. The product marketed this time, however, has been developed further into compact to as thin as 1/6 the previous. That is to say, the conventional equipment type has been changed firstly to a “compact unit type,” and changed again this time to be a ”component type.” Because it has been made compact to the utmost limit, it can be installed into the narrowest gaps making it possible to add on the existing equipment without any modification. The dust-removing rate, the essential anti-dust performance, reaches to over 90% beyond the conventional 10 to 50%. TRINC has developed a next generation “ FILM TRINC (THIN type) equipped with high-performance, ultra-compact, convenience, and economical efficiencies.
