WIRE TRINC
A powerful removal of the static charged on and the dust attached thereby to wires such as superconducting cables or fiber optics. The newly-developed Cyclonade system has made it possible.
Super low power consumption
Feature details
Powerful cleaning becomes possible with use of a newly invented
A powerful whirler in combination with a cyclone and a tornado blast off adhering dust.
Total non-contact

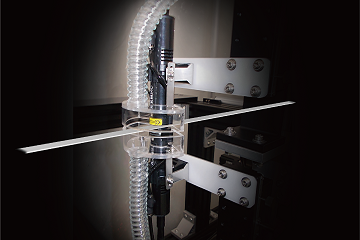

"Cyclonado®" system allows a workpiece (wire) to be cleaned while suspended in the air without touching to anything, so that it would be never contaminated again.
Powerful ions remove static charges.
The rich ions taken in whirler neutralize static charges, making dust removed easier and no static remained after processing. So resettling of dust on the surface is prevented effectively.
This can also be used for various types of wires
This device is also applicable to the use on various types of wires of flat, round and square sections.
Compact size
Compact-sized body makes it possible to install it into equipment or the narrow space made between them.
Possible for versatile installation
Installation/attachment to equipment can be done adjusting with freedom in the location and angle with reference to a workpiece (wire) for the optimum operation.
The Linear Bullet Train has been much talked about recently. In the production process of superconducting cables, key-components of the linear motor, a severe dust control is required because even scant attachment of it to them due to static could cause the entire product to fail. Likewise, in the production of optic fibers, not only scant dust attachment to them but attraction or repulsion due to static could bring the process unstable to result in unexpected troubles. So severe anti-static/dust measures are required. In the past, however, since no such ionizers or dust removers as being suitable to remove them were available, a new dedicated technology has long been desired. Trinc has developed the WIRE CLEANER TRINC adopting a newly invented "Cyclonado®" system to solve this problem.
