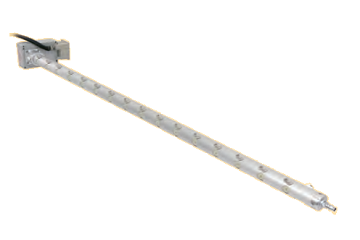

APPROVED EXPLOSION-PROOF BAR TRINC
TAS-38 BAM-XXXX-EPA (With the signal output)
XXXX=0500/1000/1500
A new approved explosion-proof ionizer 「BAR TRINC」 for anti-static/dust measures in the dangerously flammable atmosphere.
Wide area ionizing
Super low power consumption
One-touch cleaner
Feature details
Prevention of explosion by static
Under the material processing environment filled with solvent vapor and scattering particles, the spark caused by static would lead directly to an explosion or fire. So the antistatic measures are indispensable for safety and efficient operation. The Approved Explosion-proof TRINC, which has been proved in the various production sites, promises the explosion or fire-free environment as well as safe and high efficiency operation.
Prevention of quality from being damaged by static and dusts
The dusts sticking to work piece largely affect the paint surface finishing quality. However, what is really needed for the painting in the environment including flammable solvents is the anti-static/dust measures with assured explosion-proof. The Approved Explosion-proof TRINC dissipates the static charged on products with powerful ions to prevent the dust-related defects.
One-touch cleaner function
Most static ionizers installed inside equipment have faced a problem that they reduce gradually ion-discharging. This is because they are located out of reach for daily maintenance and the dust piled up on needles prevents ions from being discharged. As a result, static elimination becomes ineffective and product defect rate grows higher. Putting itself in customer’s shoes, TRINC has developed a static ionizer with a manual cleaning system. With a one-touch to turn the grip mounted on the edge of the ion-bar, a dozen of needles are cleaned in a lump. This is a patent TRINC is granted first in the field.
Various sizes available
The ion-bars are available in 3 sizes; 500, 1,000 and 1,500mm. This enables customers to choose the ion-bar to match their purposes for ionizing in a wide space to that in a narrow inside of the equipment.
Discharge needle cleaning notification function
If the discharge needle becomes dirty, the static electricity removal capacity will decrease and it will not be possible to sufficiently remove static electricity. The Explosion-Proof BAR TRINC detects the dirt on the discharge needle and turns on the cleaning LED of the discharge needle. By performing maintenance (cleaning, needle replacement, etc.) of the discharge needle, it can always be used in good condition without causing a decrease in static elimination capacity.
Overhaul notification function
The overhaul LED lights up when 4 years have passed in the actual working time (cumulative). By overhauling, it will return to the original state.
* Overhaul will be done by TRINC.
Once an explosion or a fire occurs, all the measures taken go back to square one. TRINC has developed a new approved explosion-proof ionizer with a further improved explosion-protection performance as compared with the conventional.
Product number (model number/format)
1000
1500
1000
1500
