PRODUCTS
TRINC CLEAN-ROOM UNIT
TAS-1290 PDCU-T
TAS-1292 PDCU-L-I
TAS-1293 PDCU-L-T
A clean room of different dimension
1/3 low cost, 1/10 foreign matter defect, 1/100 power saving
Prevention of dust adhering by phased array ionizing
No equipment construction required

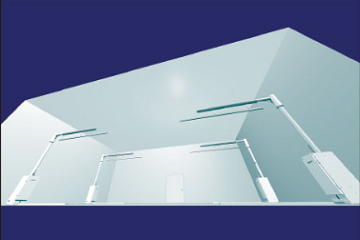

A normal room turns into a clean room
Freely expandable
Excellent economic efficiency
Feature details

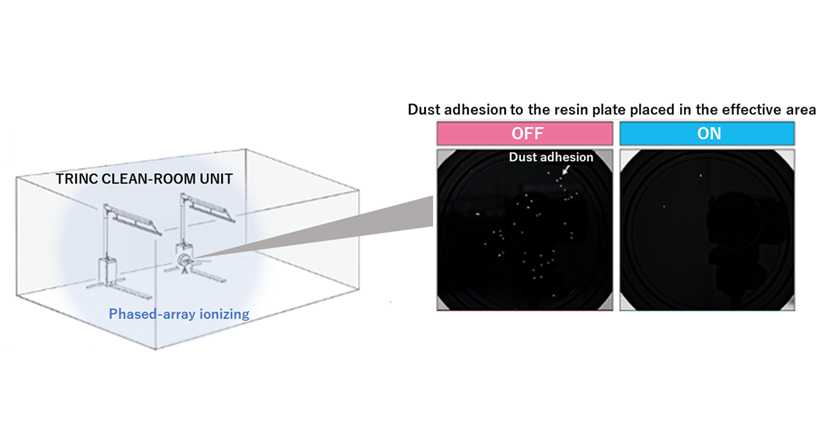

Dustproof effect by Phased Array Ionizing drastically reduces dust defects
The dust generated inside the space is neutralized with Phased Array Ionizing, so it does not adhere to the object and dust-related defects are drastically reduced.

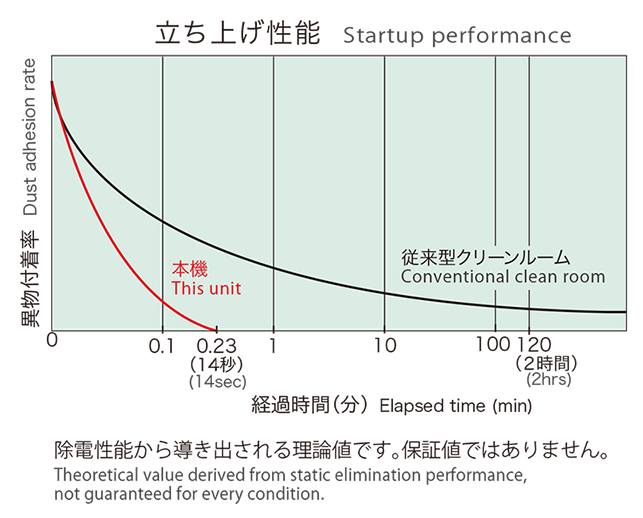

Instant startup
The conventional clean room takes several h ours to become usable after the power is turned on, but this unit can be used immediately after being switched on. Since Phased-Array Ionizer inactivates the floating dust with ions, dust adhesion to the product is immediately eliminated.
Antistatic measures.
Since Phased Array ionizing is adopted, the conventional wrist strap and the conductive shoes as anti-ESD measures are not required.
A normal room transforms into a clean room
Because there is no need to increase the indoor pressure, the room itself does not require a high level of airtightness.
It only needs to be installed in a normal room, and there is no need to build or remodel the factory.
High cleanliness
Dust floating in the room drastically decreases.
Foreign matter does not diffuse
Previously, the clean room was centralized, so if the cleanliness decreased at one location, it spread throughout the entire area. However, this machine is distributed, so even if foreign matter is generated at one location, it is collected in the clean unit. And does not s pill over to other clean units.

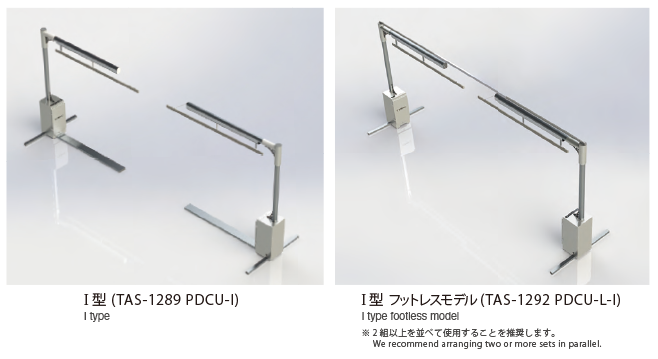

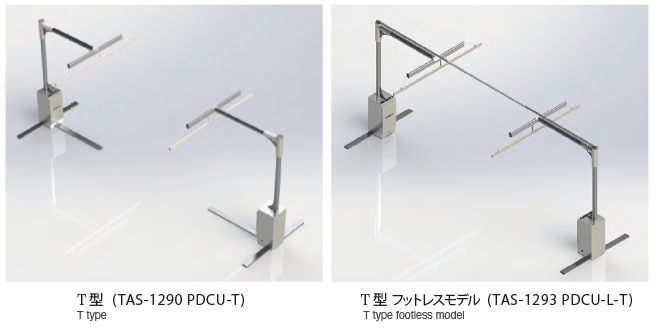

TRINC has developed a low-cost device that turns a normal room into a clean room. Unlike conventional clean rooms, no engineering works of equipment is required, so anyone can easily create a clean environment. The lineup includes two models, I-type and T-type, so that they can be installed and expanded freely according to the room layout. By combining multiple products, it is possible to handle spaces of various shapes and large spaces.
