ULTRA-SLIM SHEET CLEANER
TAS-1445 SHEET-US-300
TAS-1446 SHEET-US-450
Sheet-fed sheet cleaner appeared.
Ultra slim size with only 47 mm width.
Amazing dust removal performance.
Retrofittable
High dust-removing performance
Stability
Compact & light
Low power consumption
Feature details
High dust removal rate
The original dust removal principle is adopted, and the dust adhering to the sheet can be removed at a high dust removal rate.
High performance stability
Because it has stable operation, the high performance is exercised constantly no matte when it is operated and who operates it regardless of the environment it is used.
Prevent sheet from fluttering and lifting
A sheet-fed type sheet is prone to flapping and lifting. But a new mechanism adopted in this device makes it possible to operate stably.
Equipped with an ionizer
By applying ions to films and the dust adhering to them, the static electricity accumulated on them is neutralized to facilitate the dust being removed easily. Also, since there is no static electricity after cleaning, new dust adsorption does not occur.
Ultra-slim
The width of the device is only 47mm. It can be installed between narrow facilities or can be installed in a narrow equipment.
It supports various sheet widths
3 models compatible with various sheet widths are available to process sheets of 150mm, 300mm and 450mm.

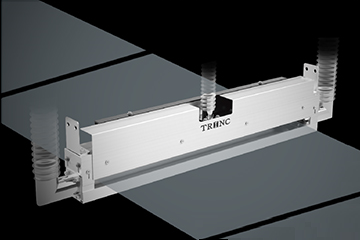

About SLIM SHEET CLEANER
This is a device to clean off microscopic foreign materials adhering to these sheet-feds. With the new cleaning principle adopted, both high dust-removing rate and high stability are assured. Thus it exercises continuous stable and high performance no matter when, where, and who it is operated. And what is the most marvelous of it is its size. Since device’s width is less than 47mm, it can be inserted between two units of equipment to use. Generally, cleaning is an incidental process taken just before the materials are machined. So, a large cleaning device, if used, wouldn’t match its original purpose. The reason of its width being set less than 47mm is to meet the needs at the work-site, that is, it is intended to be inserted into a marginal gap between the previous and post-processes.SLIM SHEET CLEANER Received the Machinery and Robot Component Award of the “20th/2023 Cho-Monodzukuri Component Awards.
